|Wire Material:||AISI 304 (Other Options: Aluminium,Stainless Steel 201,301)||Wire Diameter:||0.16-0.24mm|
|Wire QTY:||8~10||Fitting Material:||Brass,Stainless Steel,Plastic|
|Maximum Temperature:||90°C||Inner Hose:||EPDM,Natural Rubber,PEX,PVC,Santoprene|
sanitary braided hose,
braided faucet hose

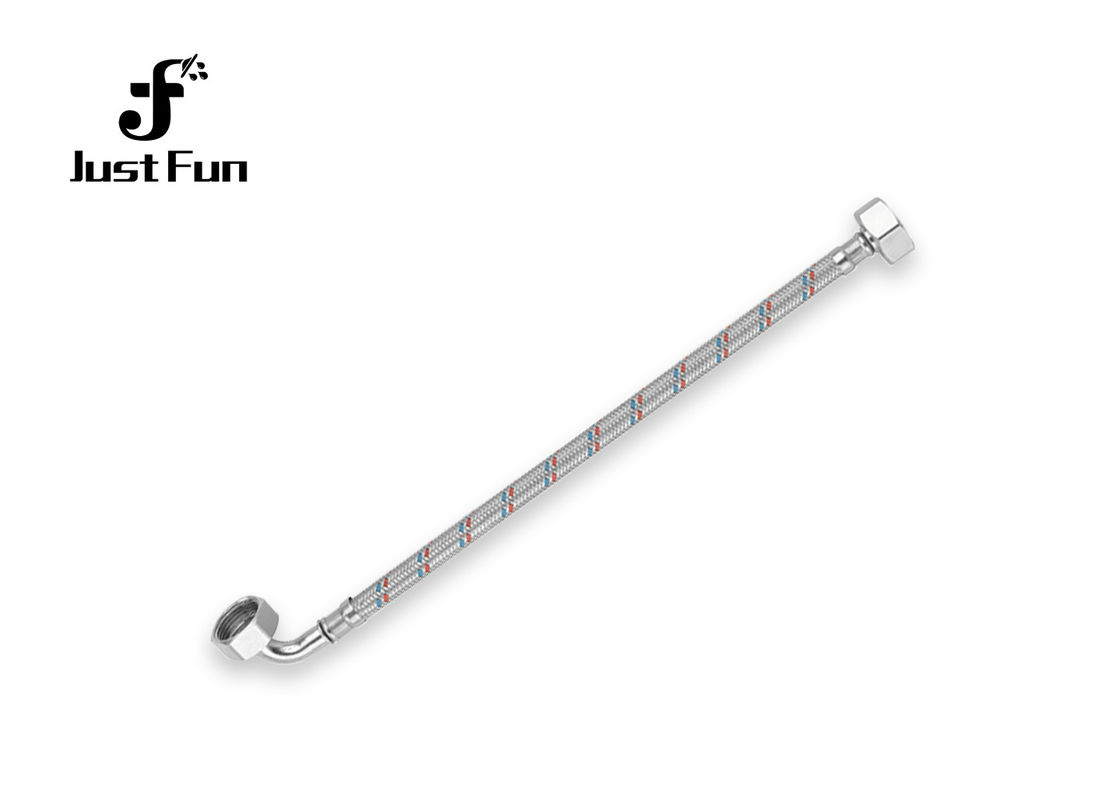

EPDM flexible Knitted 304 Stainless steel braided hose Brass Core Cold/hot water faucet inlet hose
Quick Detail:Female-Male Braided Hose
Flexible Braided Stainless Steel Water Supply Hoses are used in home and commercial applications, The braided Hoses consist of EPDM tubing jacketed with braided stainless steel, and permanently attached, inner-brass insert, compression end fittings.
We use EPDM/PEX Rubber material for the inner hose and stainless steel braiding outside.
Stainless steel have characteristics of high strength, corrosion-proof and long service life.
Work Pressure: 1.6mpa/230 Psi
Maximum Temperature: 90 °C
Female-Male Braided Hose
|A. Nut, nickel-plated brass|
|B. EPDM rubber washer|
|C. Brass insert|
|D. EPDM rubber, PVC, PEX, Santoprene|
|E. Stainless steel AISI 304 Braided hose|
|F. Elbow, Nickel-plated brass, Stainless steel AISI 304 Ferrule|
|F1-1/4’’ x F1-1/4’’x Elbow||M1-1/4’’ x F1-1/4’’x Elbow|
|F1-1/4’’ x F1-1/2’’x Elbow||M1-1/2’’XF1-F1/2’’x Elbow|
|F3/8’’ X F3/8’’ X Elbow||M3/8’’X F3/8’’X Elbow|
|F1/2’’X F1/2’’ X Elbow||M1/2’’X F1/2’’X Elbow|
|F3/4’’XF3/4’’X Elbow||M3/4''X M3/4’’ X Elbow|
|F1’’ X F1’’X Elbow||M1’’ X F1’’ X Elbow|
Stainless steel braided hose can be linked with basin, toilet, kitchen, and other sanitary devices.
Brust Pressure: 100kgs
Working Pressure: 10kgs
Working Temperature:1 °C~90°C
|Wire material||AISI 304 (Other options: aluminium,Stainless steel 201,301)|
|Fitting material||Brass,Stainless steel,Plastic|
|Packing||According to customers' specific requirements|
1. All accessories including cartridge, plating, plating thickness etc. can be customized.
2. Any idea, draft or model can be designed according to per client's request.
3. Logo laser print and packing design are free
For more details, please contact us and we can provide you with more detailed pictures or video.
